Download and import Win7-Victim vm

0. Disclaimer

​The instructor(s) are not responsible for any loss, incidental or consequential damage, or loss arising out of installation, use (unauthorized or otherwise), errors, mistakes, accident, theft or fraud, destruction, or any part of the provision of services.



If you have questions, consult a lawyer.

1. Download the Win7-Victim VM

Download the following Win7-Victim VM (.ova) which we will refer to as the attacker machine.

Size: 3.47 GB

Win7-Victim.ova md5 checksum: f81eab2a6a40d8335afa8cdce9dc9a86

Win7-Victim.ova sha1 checksum: 74dd95b98285ded446d537a161cabdeb1f170cc4

Win7-Victim.ova sha256 checksum: 3fe9b7ac82426da24d24b94d65447f92000abcdb2adab4dacbe5247a8db31cbc

Alternative download link(s):  [MyCloud]  [S3]

2. Import the Win7-Victim VM to VirtualBox

Note: The following directions were made on a Mac OS. If you have another operating system, it should be easy to relate to the directions below.

  1. Make sure you have at least 25GB free disk space on you laptop

  2. Start (open) VirtualBox

  3. Click "File"

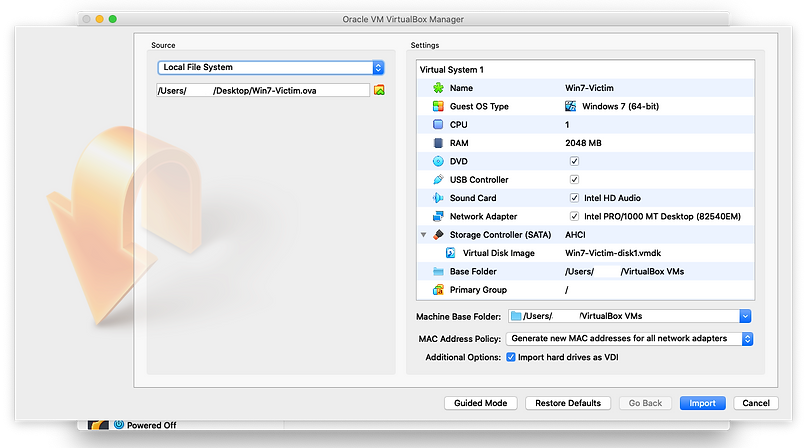

  4. Click "Import Appliance"

  5. Navigate to where you downloaded the "Win7-Victim.ova" file

  6. Choose it and click "Open"

  7. In the "MAC Address Policy" dropbox, choose "Generate new MAC addresses for all network adapters"​




















  8. Click the "Import" button and wait until the VM is fully imported in your VirtualBox Manager window

  9. Right-click the imported VM and click "Settings"

  10. Go to the "Network" settings and make sure that

    • Adapter 1 is attached to "NAT"

    • The "Name" dropbox has your wireless adapter name selected

  11. Click "Ok"

  12. Start the VM and wait until you are logged in

Congratulations! You are ready.

REMEMBER: Please delete this VM after you finish using it.

3. Troubleshooting

If you receive the following error message:

make sure that you have at least 25GB available hard drive disk space on your computer.

If you receive the following error message:

make sure to ENABLE VIRTUALIZATION on your laptop/computer BIOS.

If you receive the following error message:

then most probably the OVA file you downloaded got corrupted somehow. Check the md5 of the downloaded file and compare it with the md5 value at the top of this page. If the values do NOT match, delete the file you have and download the OVA file again. If the values match, contact the instructor.

On Mac OS, if the VM was imported successfully but when you try to start it you receive the following error message(s):

then most probably VirtualBox does NOT have permission to run on your Mac OS for some reason. You should:

- download the VirtualBox installer again

- click on "Uninstall VirtualBox" and follow the steps carefully until you receive a message that the process was completed

- click on "VirtualBox Install" to install a fresh copy of VirtualBox

- open "Security & Privacy" from your Mac's System Preferences and make sure to click "Allow" when prompted with the message below:

Once VirtualBox is successfully installed, you should open it and find that the VM you imported is still there. Start it and you should be good to go.
